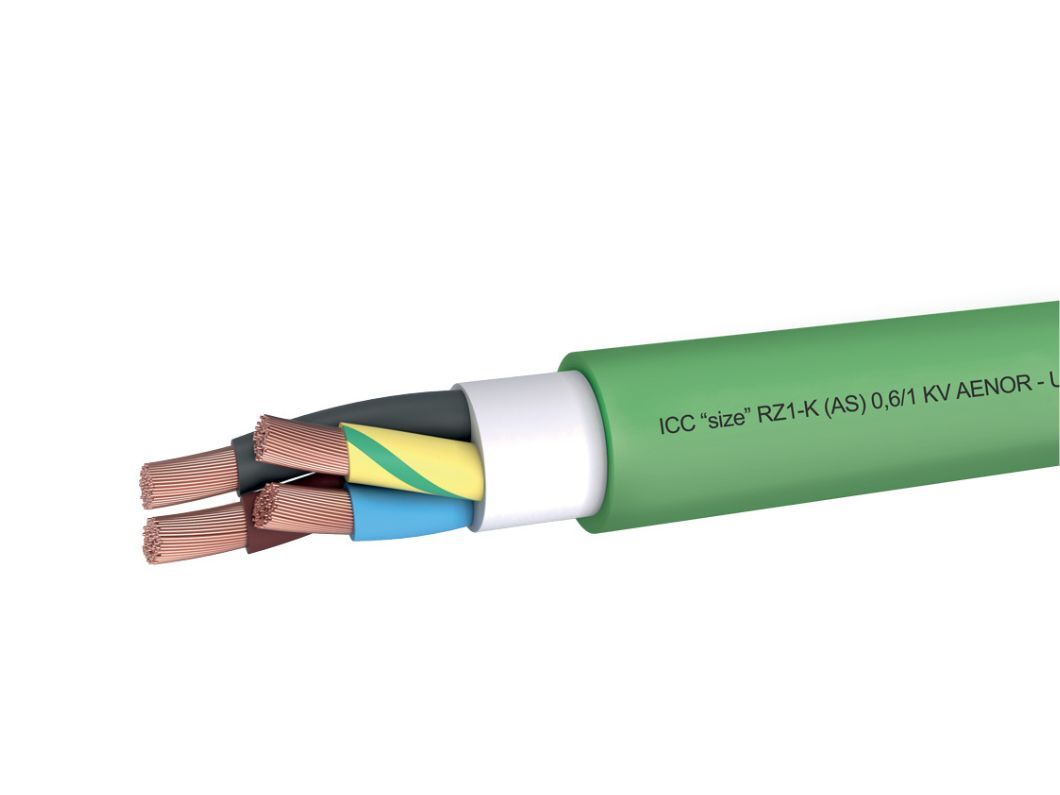

RZ1-K AENOR Cable

Fire retardant, Halogen free and low smoke signalling, control and power cables. According to the requirements of the European Construction Product Regulation
CPR Class Cca-s1b,d1,a1.

Packaging

Download

Contact us for more information about RZ1-K AENOR Cable

Request information

DETAILS

Approvals

AFNOR

Conductive Material

Bare Copper

Insulation material

XLPE (cross linked polyethylene)

Fire Behavoir

EN 50399

Cca-s1b,d1,a1

EN 60332-1-2

EN 60754-1/2

EN 61034-1/2

fp-dop

DOP2017-039

Reference standards

UE 305/2011(CPR)

IEC 60502

UNE 21123-4

IEC EN 60228

Cable Type

Single core

Multicore

Round shape

CPR

CPR

Higher temperature in fixed installation

70

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Voltage

0,6/1kV

Voltage Uo

600

Voltage U

1000

Voltage Umax

1200

Laying conditions

Heavy duty and mechanical shocks

Permanent outdoor use

Flexible cable

Wet environments

Direct burial

Installation in free air

Characteristic

CPR Classified

Rohs compliant

Low emission of smokes and halogens

Logo CE

SI
