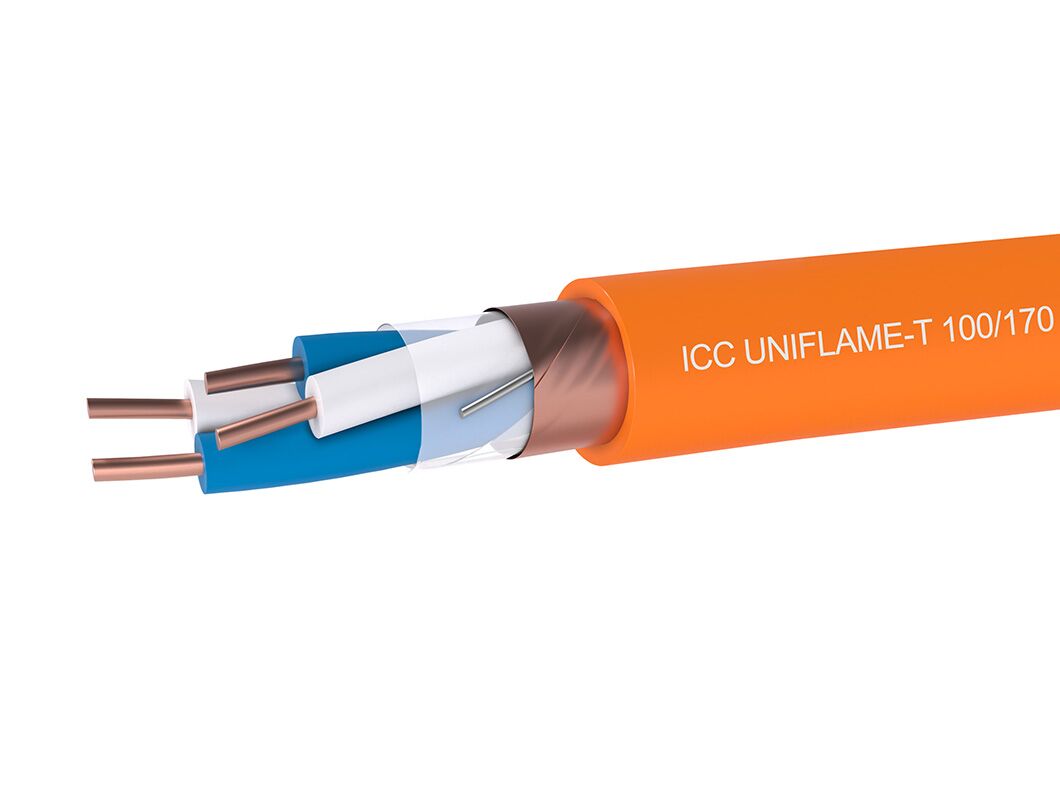

UNIFLAME-T PRO CR1-C1 Cable

Fire resistant, flame retardant, halogen free and low smoke Telephone multipair fire safety cables, CR1/C1 NF C 32-310, Ph120 EN50200 and IEC 60331-24 90 min. Fire resistant silicone insulated and LSOH thermoplastic compound type M1 sheathed.

Packaging

Download

Contact us for more information about UNIFLAME-T PRO CR1-C1 cable

Request information

DETAILS

Approvals

LCIE

NF-USE

Insulation material

SIR (Silicone rubber)

SIR (Silicone)

Conductive Material

Bare Copper

CE Marking

CE Marking

Fire Behavoir

EN 60332-1-2

EN 50200

NF C 32-310

Reference standards

EN 50363

NF C 32-310

IEC EN 60228

Other features

Foil / Tape shield

Cable Type

Multicore

Round shape

Higher temperature in fixed installation

90

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Voltage

100/170V

Voltage Uo

100

Voltage U

170

Laying conditions

Burial inside pipe or conduit

Indoor protected installation

Wet environments

Installation in free air

Characteristic

Fire retardant IEC 60332-3

Fire resistant

Rohs compliant

Low emission of smokes and halogens
