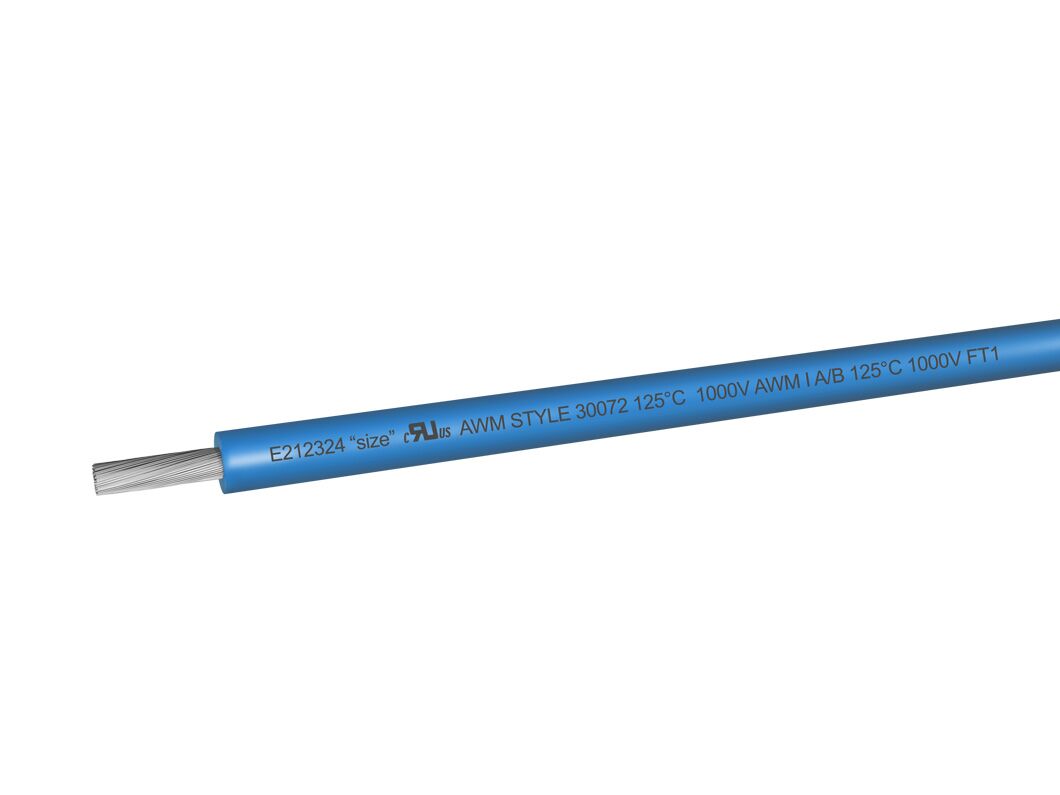

UL Style 30072 Cable

Single-core cables with special technopolymer insulation.

Packaging

Download

Contact us for more information about UL Style 30072 cable

Request information

DETAILS

Approvals

UL

CE Marking

CE Marking

Reference standards

UL 758

CSA c.22.2 No. 210

Fire Behavoir

EN 60332-1-2

FT2

EN 60754-1/2

EN 61034-1/2

Insulation material

XLPO (cross linked polyolefine

Cable Type

Single core

Higher temperature in fixed installation

125

Lower temperature in fixed installation

-50

Lower temperature during installation

-40

Voltage

1000V

Laying conditions

Indoor protected installation

Flexible cable

Characteristic

Contact to hot surfaces

Rohs compliant

Low emission of smokes and halogens

Chemical resistance

Oil resistance

Low temperature

Flame retardant IEC 60332-1
