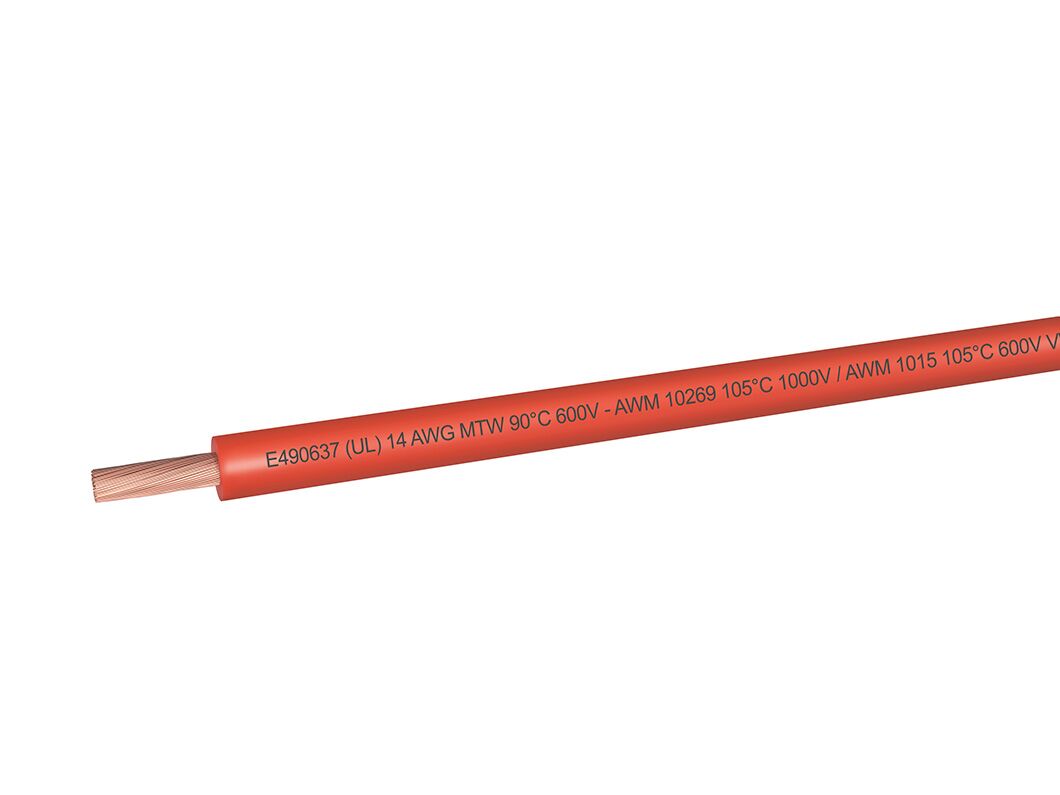

MULTI-RATED UL(MTW) ÷ HAR ÷ AWM Cable

Multi standard switchgear & control panel wires.

Packaging

Download

Contact us for more information about MULTI-RATED UL(MTW) ÷ HAR ÷ AWM cable

Request information

DETAILS

Approvals

IMQ HAR

CSA

UL

Insulation material

PVC (Polyvinyl chloride plasticized) Y

Conductive Material

Bare Copper

Tin plated copper

CE Marking

CE Marking

Fire Behavoir

VW-1

EN 60332-1-2

Reference standards

CSA c.22.2 No. 127

UL 1063

EN 50363

UE 305/2011(CPR)

IEC EN 60228

EN 50525-2-31

UL 758

HD 21

Cable Type

Single core

Higher temperature in fixed installation

105

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Lower temperature in mobile installation

5

Voltage

450/750V

Voltage Uo

450

Voltage U

750

Voltage Umax

1000

Laying conditions

Burial inside pipe or conduit

Indoor protected installation

Flexible cable

Characteristic

Flame retardant IEC 60332-1

Rohs compliant

Oil resistance
