Discover ICC range of single-core welding cables. Extremely flexible, resistant to heat, slag and oils. Suitable for indoor and outdoor use.
ICC WELDING CABLES: SAFETY, FLEXIBILITY AND DURABILITY IN DEMANDING CONDITIONS
In metal fabrication and heavy industry sectors, component reliability is crucial. To meet the demands of these challenging environments, ICC presents its range of single-core cables designed for welding applications, engineered to ensure safe operations even under heavy-duty conditions, such as those encountered with arc welders.

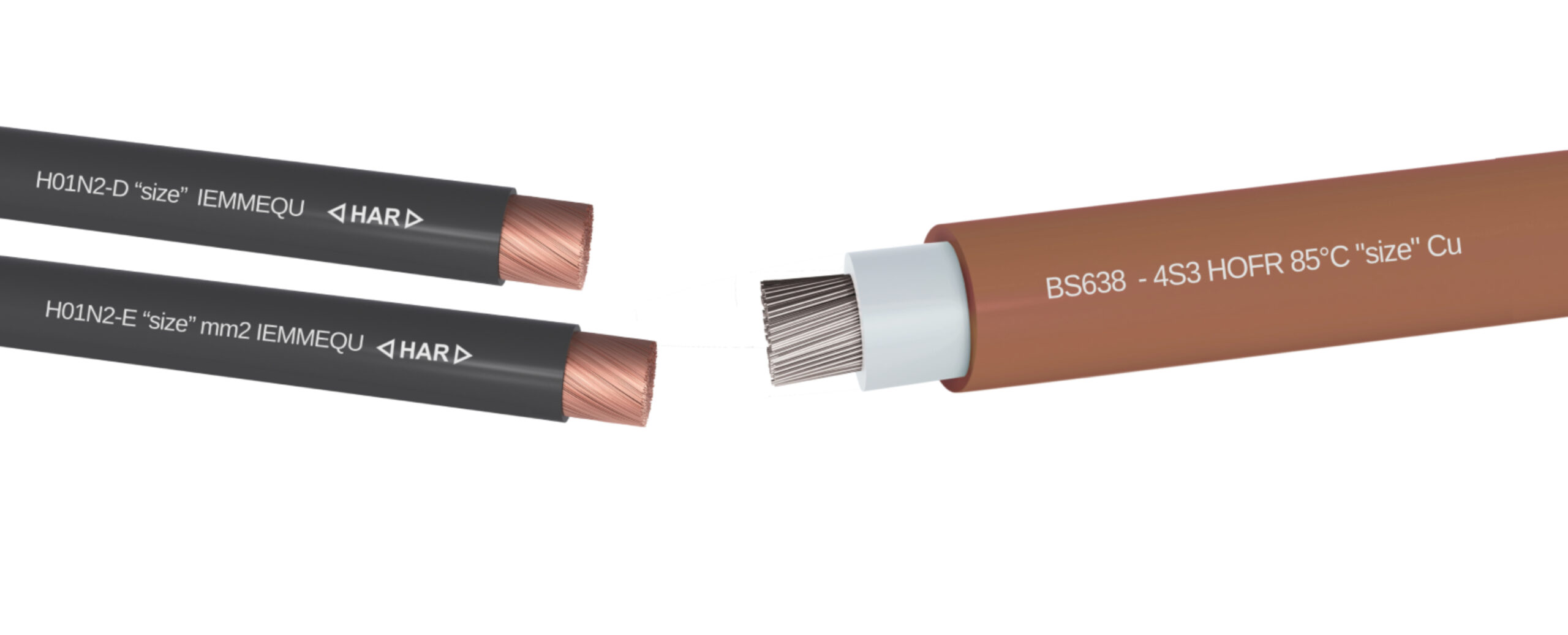

Our range includes the H01N2-D, H01N2-E and EPR HOFR BS638.4 models.
COMPOSITION AND TECHNICAL SPECIFICATIONS
At the heart of these cables is a flexible copper conductor, available in red or tinned versions. What makes the difference is the sheathing technology:
- For the H01N2-D/E models, chlorinated elastomeric rubber is employed.
- For the BS638.4 model, the insulation is EPR with HOFR chlorinated rubber sheath (Heat and Oil Resistant, Flame Retardant).
These high-quality materials ensure an excellent operating temperature range from -20°C to +85°C (down to -40°C when permanently installed). The standard rated voltage is 100/100 V, but it reaches 450/750 V for the EPR/HOFR variant.
THE COMPETITIVE ADVANTAGES OF ICC WELDING CABLES
ICC welding cables stand out on the market for their combination of robustness and ease of handling. The extreme flexibility of our cables, which is maintained even at low temperatures, makes them ideal for the continuous and frequent movements required by operators, simplifying use and installation.
The high-performance rubber sheath offers total protection and extended durability even in harsh environments. The cables are characterised by high resistance to:
- Incandescent particles, such as welding residues and slag.
- Abrasion and mechanical impact.
- Oils and chemicals.
- Heat and flame (the cable is flame-retardant).
APPLICATIONS
Thanks to their compliance with international standards (IMQ / EN / IEC) and suitability for both indoor and outdoor installation, ICC welding cables offer great versatility.
They are the ideal choice for:
- Arc welders and mobile welding systems.
- Connection of electrode holders.
- Applications on construction sites, in metal fabrication and heavy industry.
- Wiring of battery packs (e.g. forklift trucks) and low-voltage, high-current DC systems.
Consult the technical data sheets for the products here:
