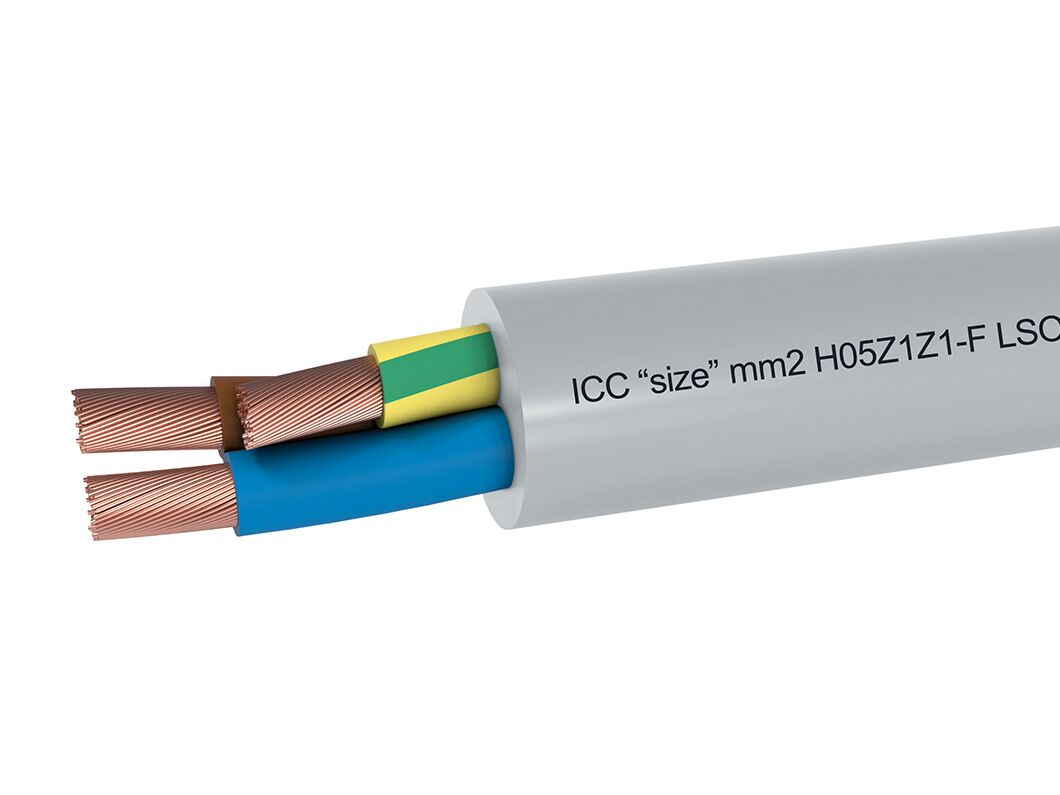

H05Z1Z1-F Cable

Power cables,LSOH thermoplastic insulated, under LSOH thermoplastic sheath.

Packaging

Download

Contact us for more information about H05Z1Z1-F cable

Request information

DETAILS

Insulation material

HF (termoplastic)

Conductive Material

Bare Copper

Tin plated copper

CE Marking

CE Marking

Fire Behavoir

EN 60754-1/2

EN 61034-1/2

EN 60332-1-2

Reference standards

EN 50525-3-11

EN 50565

EN 50363

IEC EN 60228

HD 21

Cable Type

Multicore

Round shape

Higher temperature in fixed installation

70

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Lower temperature in mobile installation

5

Higher temperature in mobile installation

70

Voltage

300/500V

Voltage Uo

300

Voltage U

500

Laying conditions

Flexible cable

Indoor mobile service

Mobile service

Wet environments

Characteristic

Rohs compliant

Flame retardant IEC 60332-1

Low emission of smokes and halogens
