Home // Electrical cables // Signaling and measuring cables // FTG18OM16 Cable

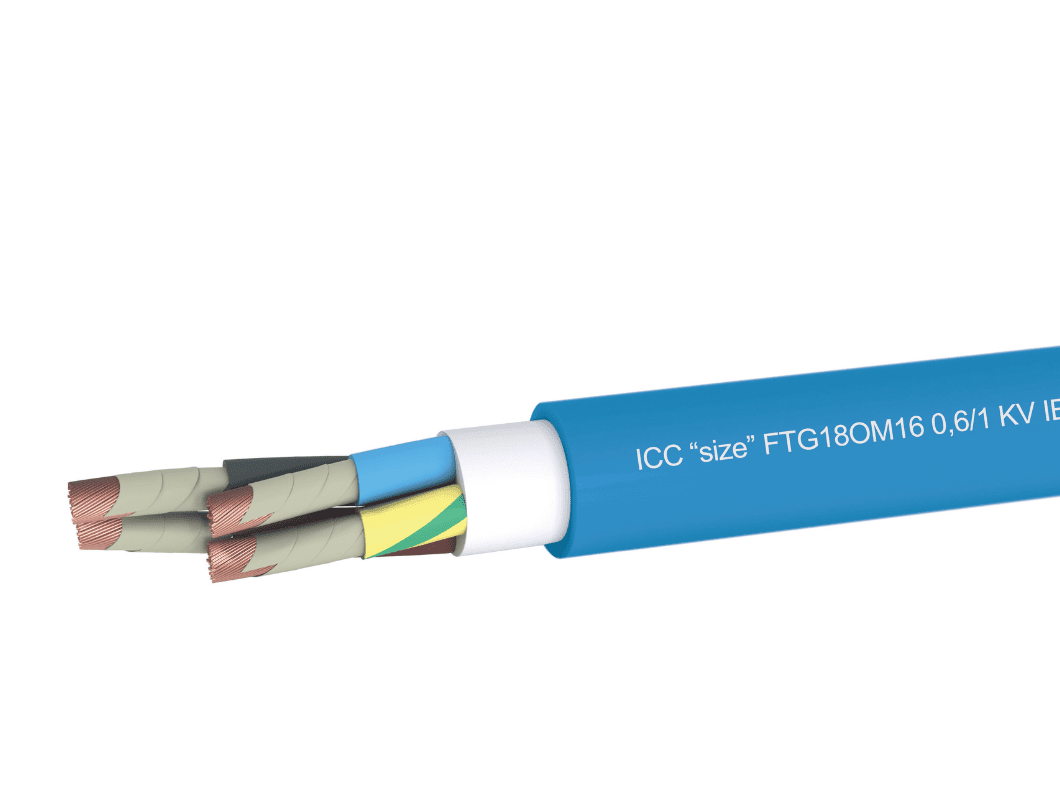

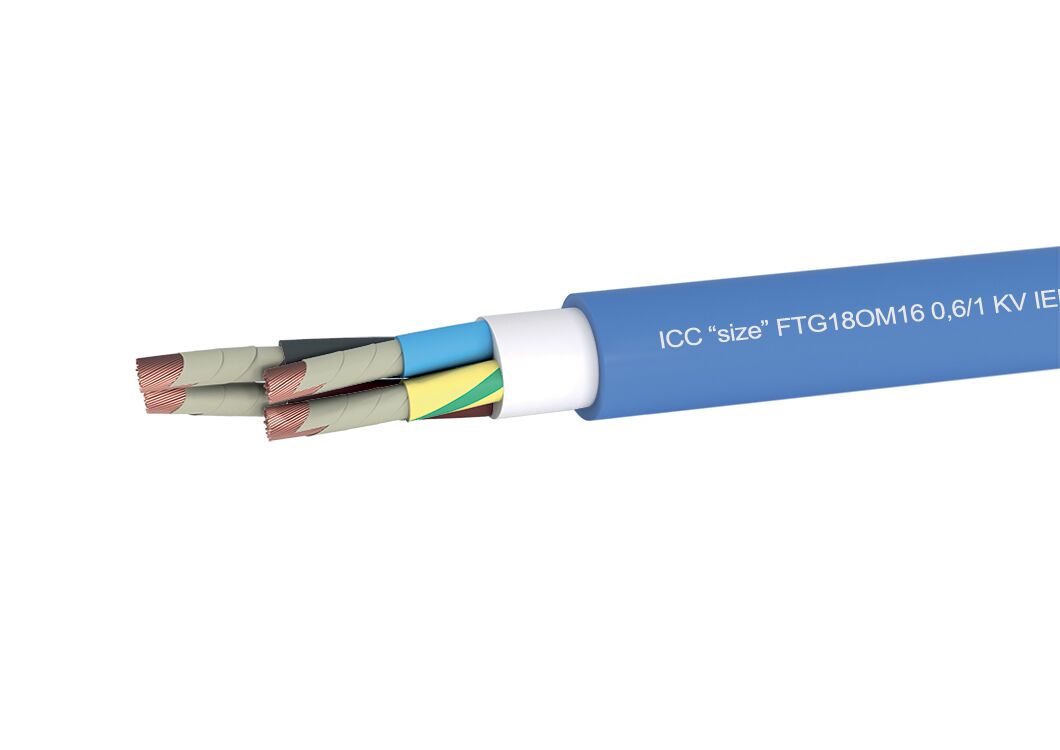

FTG18OM16 Cable

Fire resistant and fire retardant, Halogenfree and low smoke signalling, control and power cables. According to the requirements of the European Construction Product Regulation CPR Class B2ca-s1a,d1,a1.

Packaging

Download

Contact us for more information about FTG18OM16 cable

Request information

DETAILS

Approvals

IMQ EFP

Insulation material

EPR (ethylen-proplylen rubber)

Conductive Material

Tin plated copper

Bare Copper

CE Marking

CE Marking

Fire Behavoir

EN 50200

EN 50362

EN 50399

B2ca-s1a,d1,a1

EN 60332-1-2

EN 60754-1/2

EN 61034-1/2

fp-dop

DOP2020-011

Reference standards

CEI 20-45

UE 305/2011(CPR)

EN 50363

IEC EN 60228

Cable Type

Multicore

Round shape

CPR

CPR

Higher temperature in fixed installation

70

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Voltage

0,6/1kV

Voltage Uo

600

Voltage U

1000

Voltage Umax

1200

Laying conditions

Wet environments

Direct burial

Installation in free air

Heavy duty and mechanical shocks

Permanent outdoor use

Flexible cable

Characteristic

Low emission of smokes and halogens

Rohs compliant

CPR Classified

Fire resistant
