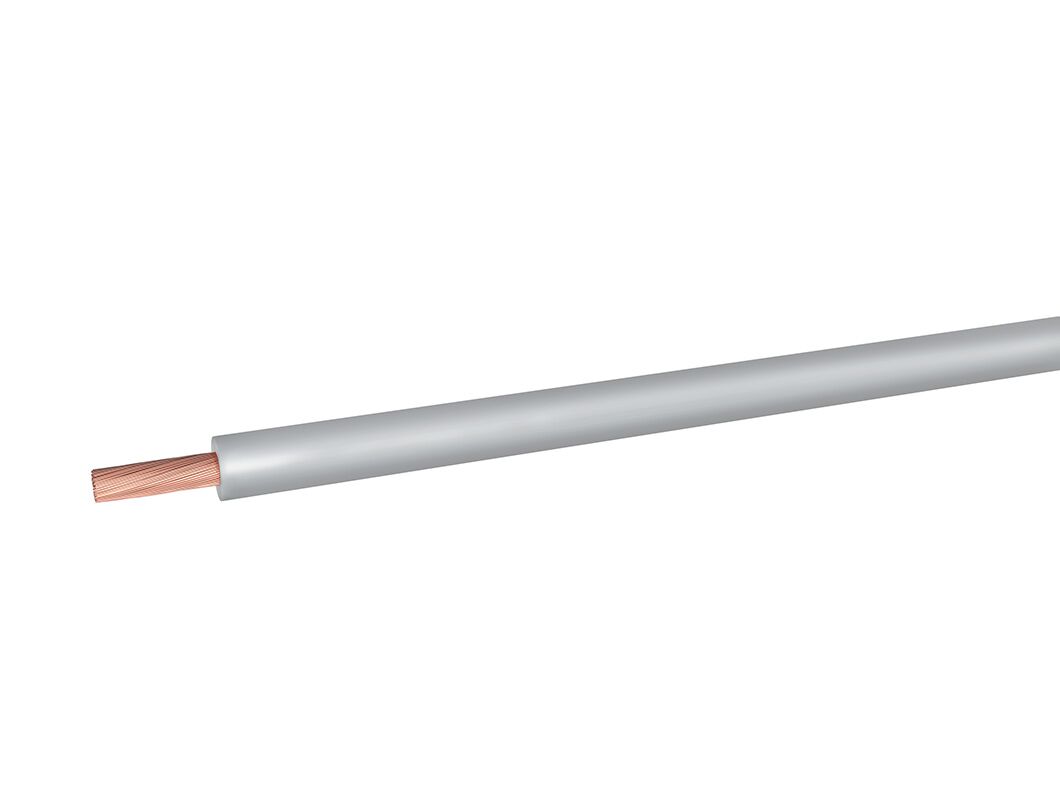

FLRYW-A/B T3 Cable

Automotive single-core cables with thin wall PVC insulation,high temperature resistant.

Packaging

Download

Contact us for more information about FLRYW-A/B T3 cable

Request information

DETAILS

Approvals

R118

Insulation material

PVC (Polyvinyl chloride plasticized) Y

Conductive Material

Bare Copper

CE Marking

CE Marking

Fire Behavoir

EN 60332-1-2

ISO6722

Reference standards

DIN 72551

FIAT 91107

R118

ISO 14572

ISO 19642

ISO 6722-1

Cable Type

Single core

Higher temperature in fixed installation

125

Lower temperature in fixed installation

-40

Lower temperature during installation

5

Voltage

300V

Voltage Uo

0

Voltage U

0

Voltage Umax

0

Laying conditions

Flexible cable

Characteristic

Rohs compliant

Chemical resistance

Oil resistance

Low temperature
