Home // Electrical cables // Signaling and measuring cables // FG18OM16 Cable

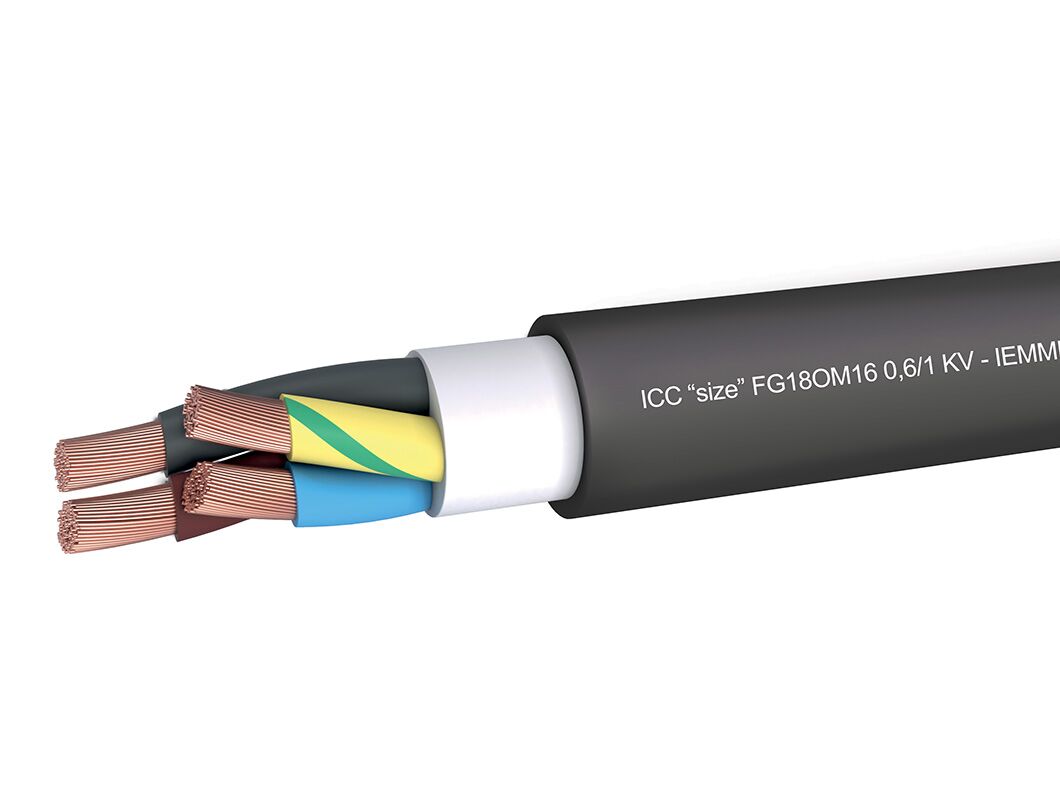

FG18OM16 Cable

Fire retardant, Halogenfree and low smoke signalling, control and power cables. According to the requirements of the European Construction Product Regulation CPR Class B2ca-s1a,d1,a1.

Packaging

Download

Contact us for more information about FG18OM16 cable

Request information

DETAILS

Approvals

IMQ EFP

Insulation material

EPR (ethylen-proplylen rubber)

Conductive Material

Bare Copper

Tin plated copper

CE Marking

CE Marking

Fire Behavoir

EN 50399

B2ca-s1a,d1,a1

EN 60332-1-2

EN 60754-1/2

EN 61034-1/2

fp-dop

DOP2018-020

Reference standards

EN 50363

IEC EN 60228

CEI 20-38

UE 305/2011(CPR)

CEI UNEL 35312

Cable Type

Multicore

Round shape

CPR

CPR

Higher temperature in fixed installation

70

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Voltage

0,6/1kV

Voltage Uo

600

Voltage U

1000

Voltage Umax

1200

Laying conditions

Permanent outdoor use

Flexible cable

Wet environments

Direct burial

Installation in free air

Heavy duty and mechanical shocks

Characteristic

CPR Classified

Low emission of smokes and halogens

Rohs compliant
