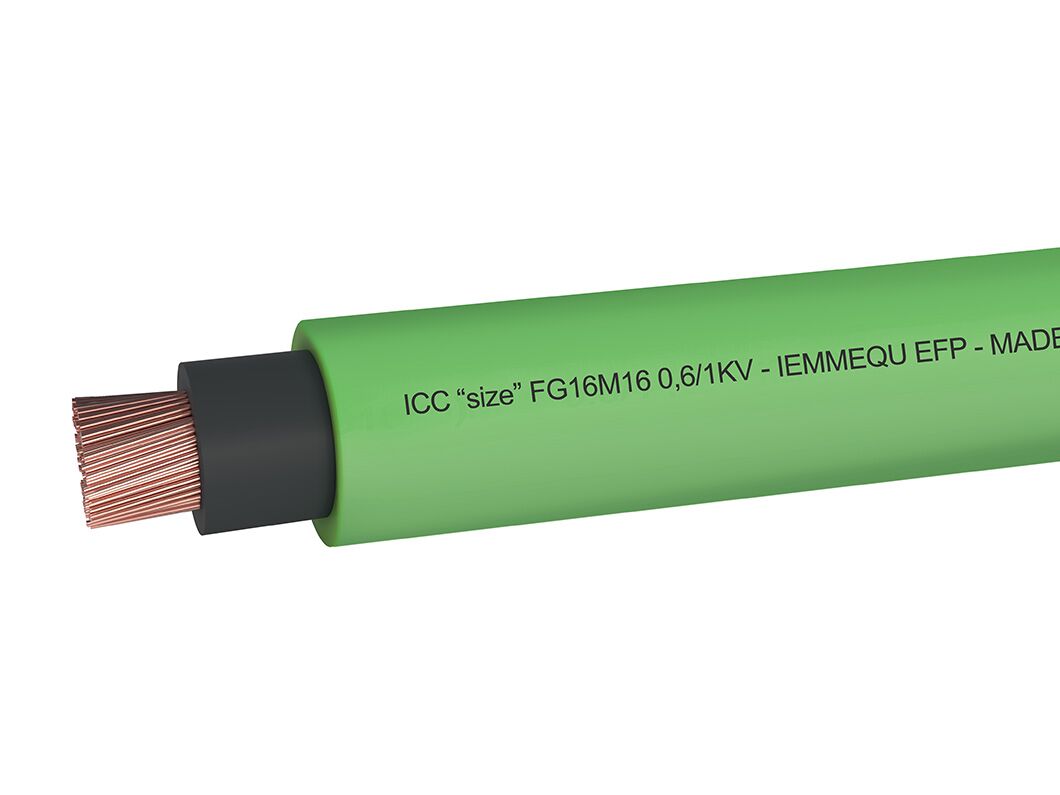

FG16M16 Cable

Fire retardant, Halogenfree and low smoke signalling, control and power cables. According to the requirements of the European Construction Product Regulation CPR Class Cca-s1b,d1,a1.

Packaging

Download

Contact us for more information about FG16M16 Cable

Request information

DETAILS

Approvals

IMQ EFP

Conductive Material

Bare Copper

Tin plated copper

Insulation material

HEPR (ethylen-proplylen rubber)

Fire Behavoir

EN 60332-1-2

Cca-s1b,d1,a1

EN 60754-1/2

EN 61034-1/2

EN 50399

fp-dop

DOP2018-021

Reference standards

EN 50363

IEC EN 60228

CEI UNEL 35324

CEI 20-13

UE 305/2011(CPR)

Cable Type

Single core

CPR

CPR

Higher temperature in fixed installation

70

Lower temperature in fixed installation

-15

Lower temperature during installation

5

Voltage

0,6/1kV

Voltage Uo

600

Voltage U

1000

Voltage Umax

1200

Laying conditions

Flexible cable

Wet environments

Direct burial

Installation in free air

Heavy duty and mechanical shocks

Permanent outdoor use

Characteristic

Low emission of smokes and halogens

CPR Classified

Rohs compliant

Logo CE

SI
