What does VFD stand for?

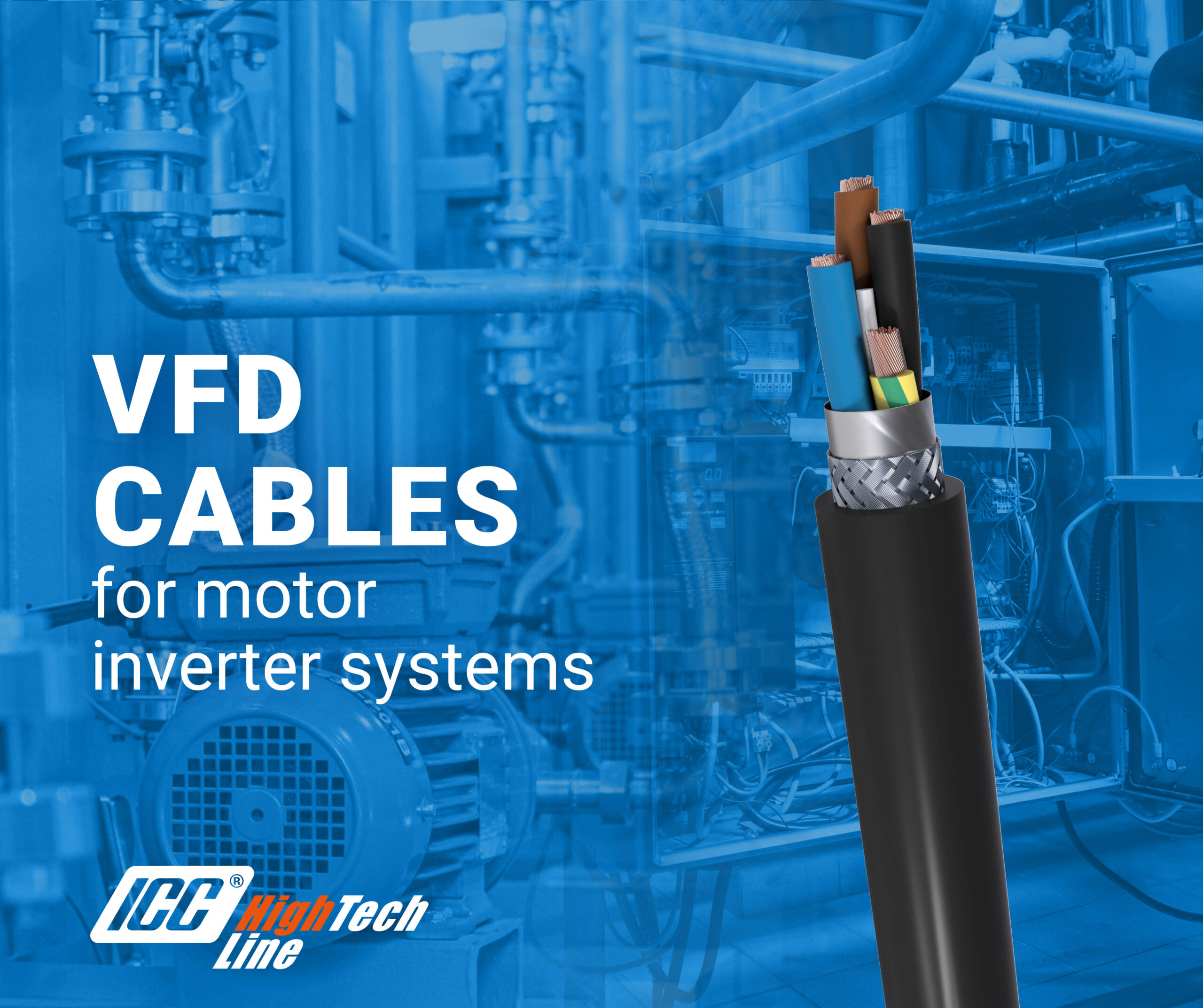

ICC expands its product range for the industrial automation sector by adding to its catalogue VFD cables, employed in power motors with inverter drive systems.
The acronym VFD (Variable Frequency Drive) means “device for frequency variation”, namely the inverter, a device that converts direct current (DC) to alternating current (AC).
Operation of the VFD inverter motor system
The operation of the motor drive system with a VFD inverter involves the installation of an electronic controller that adjusts the frequency of the supply voltage. Because of the variation of frequency, the system affects the number of revolutions and consequently the speed of the motor.
VFD cable design
ICC VFD cables are designed for fixed installation or occasional movement.

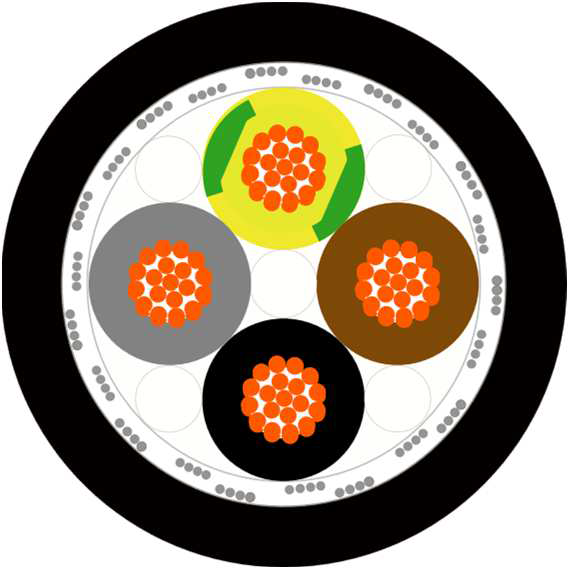

The construction includes sections ranging from 1.5mm² (16 AWG) to 240mm² (1 AWG) with four conductors.

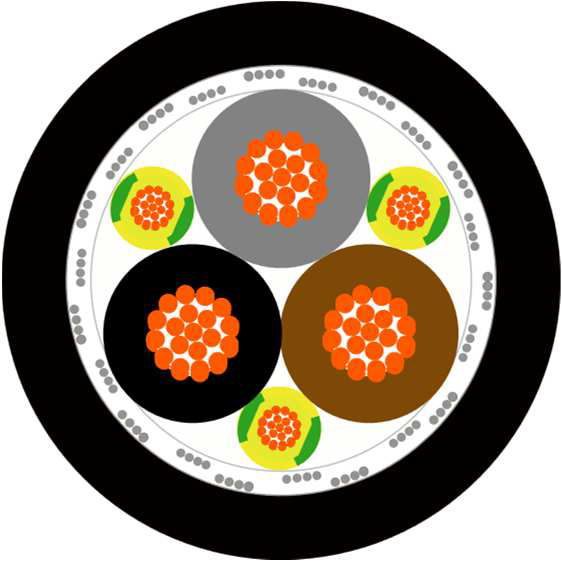

Our product is also available in a configuration with the ground conductor divided into three conductors arranged symmetrically. The aim is to eliminate induced currents, which can cause malfunctions, interferences, and premature damage to motor bearings.
The shield composition is designed to minimize interferences as much as possible, combining an aluminum/polyester tape with a tinned copper braid.
KEY FEATURES OF THE ICC VDF
VFD 1000 F Type 2YSLCYK-J
- Flexible wire Class 5
- L/MDPE – Polythene insulation
- PVC sheath
- Overall screen with aluminum/polyester tape and a tinned copper wire braid, nom. coverage 70%
- Black RAL 9005
- 70°C 0,6/1 kV
- Flame retardant IEC 60332-1-2
- Oil resistant EN 50290 TM54
VFD 1000 F UL STYLES 10492/2570 Type 9YSLCYK-J
- Flexible wire Class 5
- PP insulation – Polypropylene UL STYLE 10492
- PVC UL STYLE 2570 Sheath
- Overall screen with aluminum/polyester tape and a tinned copper wire braid, nom. coverage 85%
- Black RAL 9005
- UL 80°C 1000 V
- Flame retardant IEC 60332-1-2 – VW1 – FT1 – CABLE FLAME TEST
- Oil resistant EN 50290 TM54
