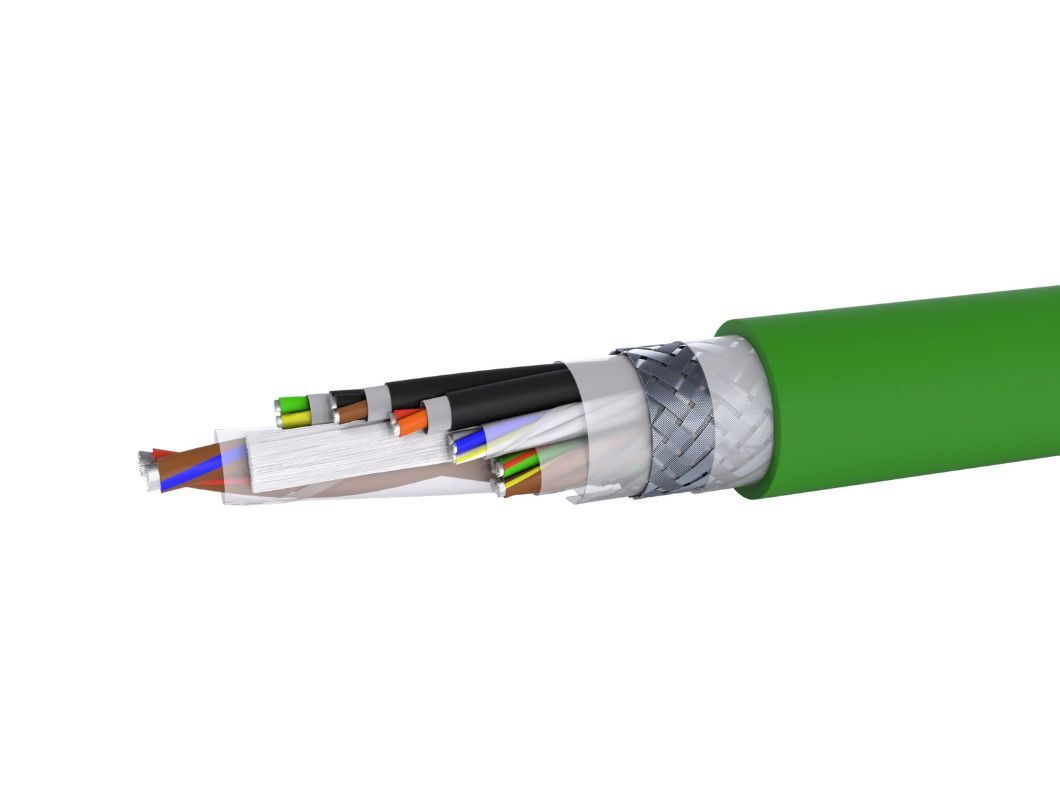

ENCODER/RESOLVER 300 H UL AWM STYLE 10493/20233 Cable
Extraflexible Encoder/Resolver cable, Polypropylene or TPE insulated, HFFR PUR sheathed, Halogeen free, Flame retardant Oil resistant, Suitable for dynamic installation in drag chain with harsh conditions
Packaging
Contact us for more information about ENCODER/RESOLVER 300 H UL AWM STYLE 10493/20233 Cable
Request information-
Conductive Material
Bare Copper
Insulation materialTPE-E (Poliestere)
TPE-E (Thermoplastic polyester elastomer on polyester ester basis)
PP(polypropylene)
Fire BehavoirIEC 60332-1-2/VW-1/FT1,IEC 60754-1
Reference standardsUL 758
CSA 22.2 No 210
UL1581
IEC 60228
IEC 60811-404
Other featuresBraid screen
Braided shield
GuainaPUR
Cable TypeMulticore
Round shape
Higher temperature in fixed installation80
Lower temperature in fixed installation-50
Higher temperature in mobile installation80
Lower temperature in mobile installation-40
Voltage300V
Laying conditionsDynamic application in drag chain
Heavy duty and mechanical shocks
CharacteristicRohs compliant
Oil resistance
Flame retardant IEC 60332-1
Low emission of smokes and halogens
