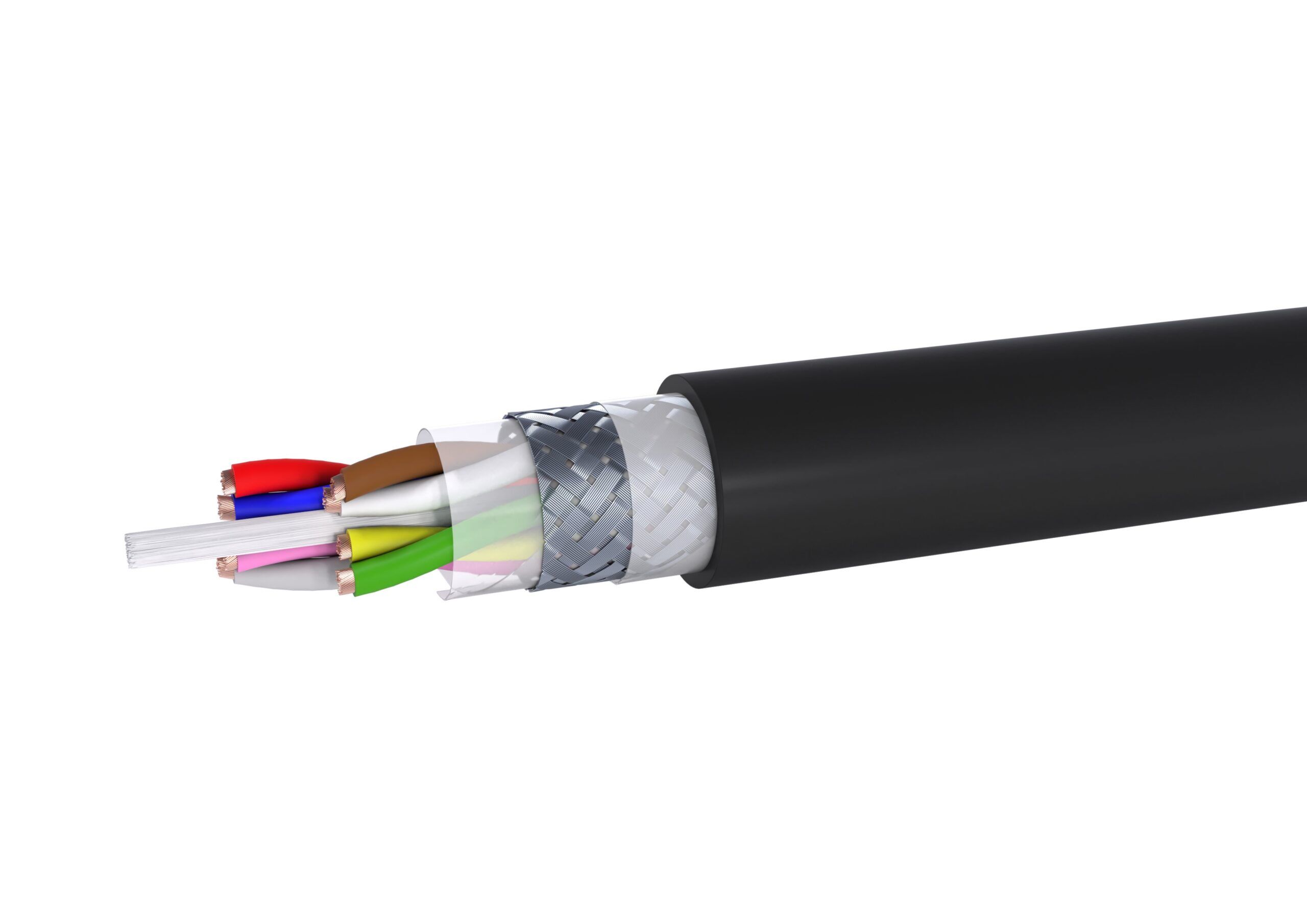

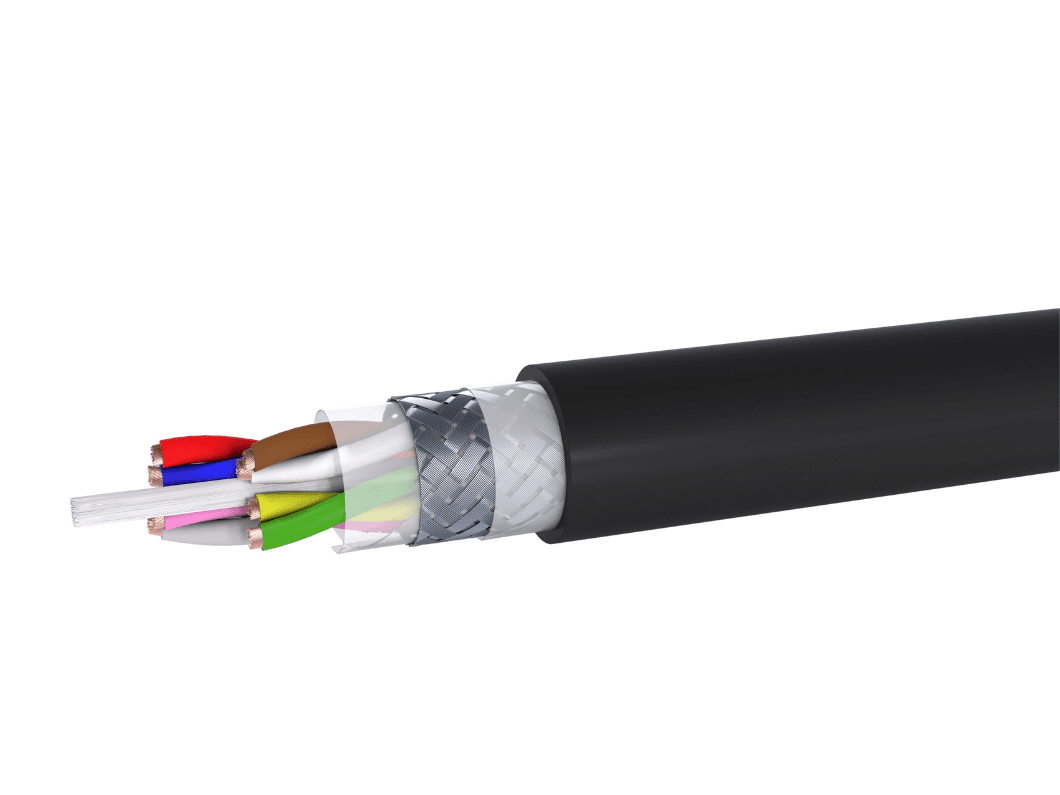

CONTROL 300 H-SC-P UL AWM STYLE 10493/20233 Cable
Extraflexible multipairs screened control and signal cable, Polypropylene insulated, HFFR PUR sheathed, Halogeen free, Flame retardant Oil and UV resistant,Suitable for dynamic application in drag chain with harsh conditions
Packaging
Contact us for more information about CONTROL 300 H-SC-P UL AWM STYLE 10493/20233 Cable
Request information-
Conductive Material
Bare Copper
Insulation materialPP (polypropylene)
Fire BehavoirIEC 60332-1-2/VW-1/FT1,IEC 60754-1
IEC 60332-1-2,IEC 60754-1
Reference standardsUL 758
CSA 22.2 No 210
UL1581
EN 50363
IEC 60228
IEC 60811-404
Other featuresBraid screen
Braided shield
GuainaPUR
Cable TypeMultipairs
Round shape
Higher temperature in fixed installation80
Lower temperature in fixed installation-50
Higher temperature in mobile installation80
Lower temperature in mobile installation-40
Voltage300V
Laying conditionsHeavy duty and mechanical shocks
Servizio pesante/shock meccanici
Dynamic application in drag chain
CharacteristicRohs compliant
Oil resistance
Flame retardant IEC 60332-1
Non propagante la fiamma IEC 60332-1
Low emission of smokes and halogens
Logo CESI
Download
Technical Data-sheet
