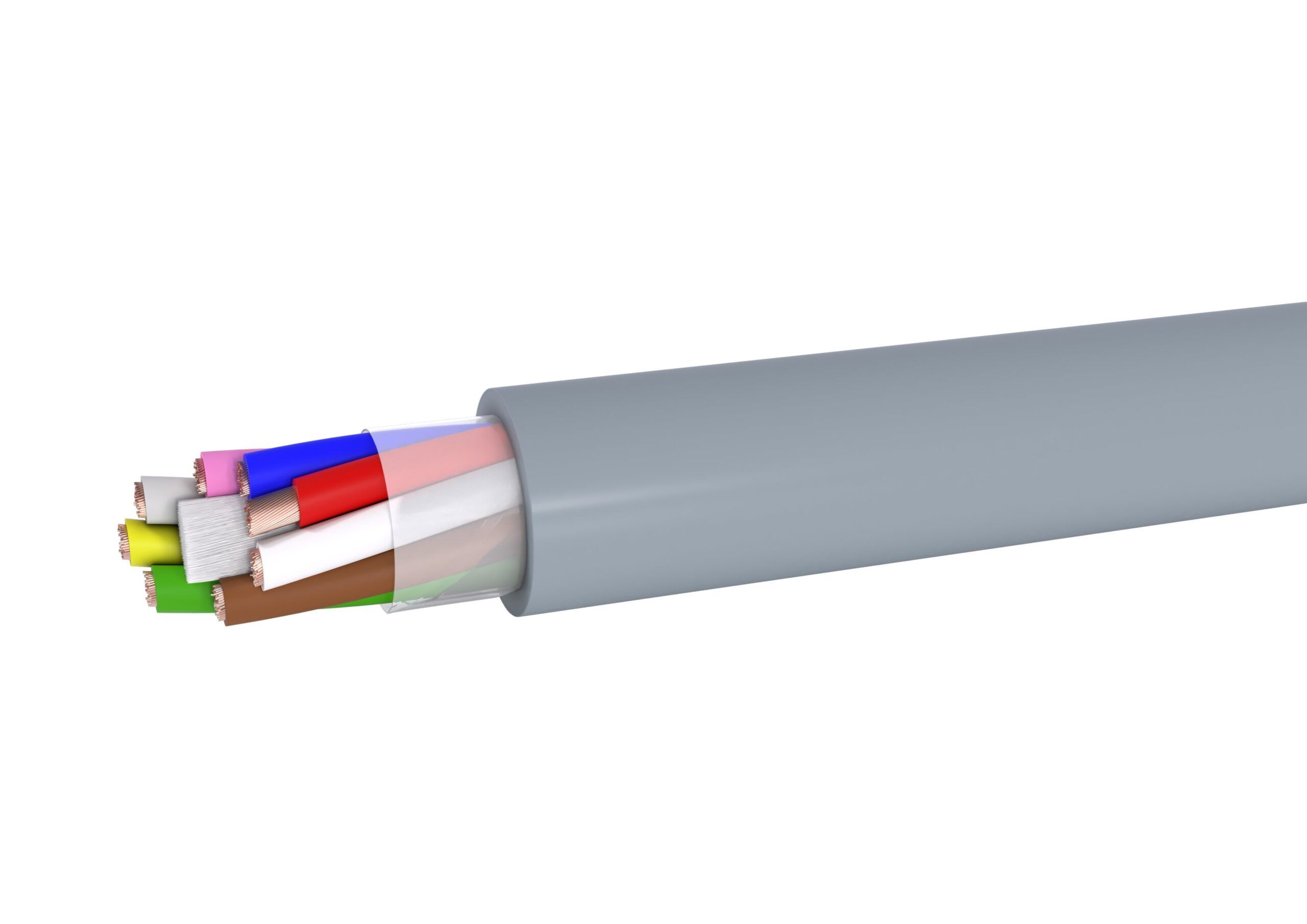

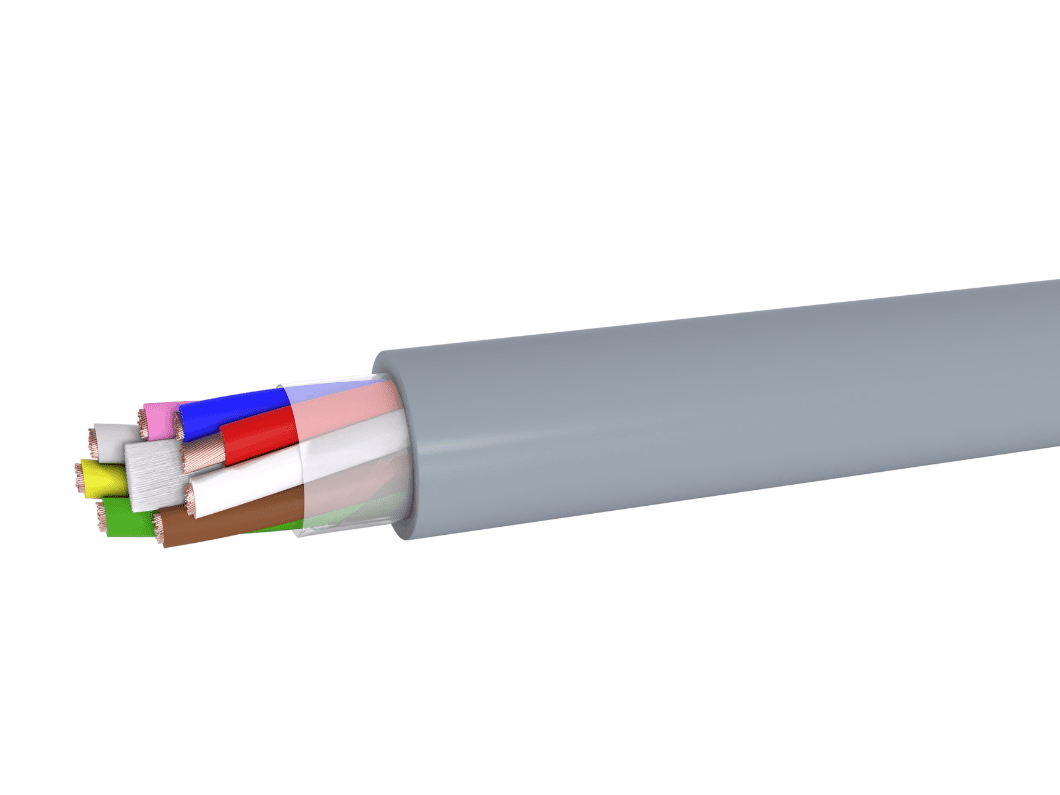

CONTROL 300 H UL AWM STYLE 10493/20233
Extraflexible multicore control and signal cable, Polypropylene insulated, HFFR PUR sheathed, Halogeen free, Flame retardant Oil and UV resistant,Suitable for dynamic application in drag chain with harsh conditions
Packaging
Contact us for more information about CONTROL 300 H UL AWM STYLE 10493/20233
Request information-
Conductive Material
Bare Copper
Insulation materialPP (polypropylene)
Fire BehavoirIEC 60332-1-2/VW-1/FT1,IEC 60754-1
Reference standardsCSA 22.2 No 210
UL1581
UL 758
IEC 60228
IEC 60811-404
GuainaPUR
Cable TypeMulticore
Round shape
Higher temperature in fixed installation80
Lower temperature in fixed installation-50
Higher temperature in mobile installation80
Lower temperature in mobile installation-40
Voltage300V
Laying conditionsHeavy duty and mechanical shocks
Dynamic application in drag chain
Servizio pesante/shock meccanici
CharacteristicOil resistance
Rohs compliant
Non propagante la fiamma IEC 60332-1
Flame retardant IEC 60332-1
Low emission of smokes and halogens
Logo CESI
Download
Technical Data-sheet
