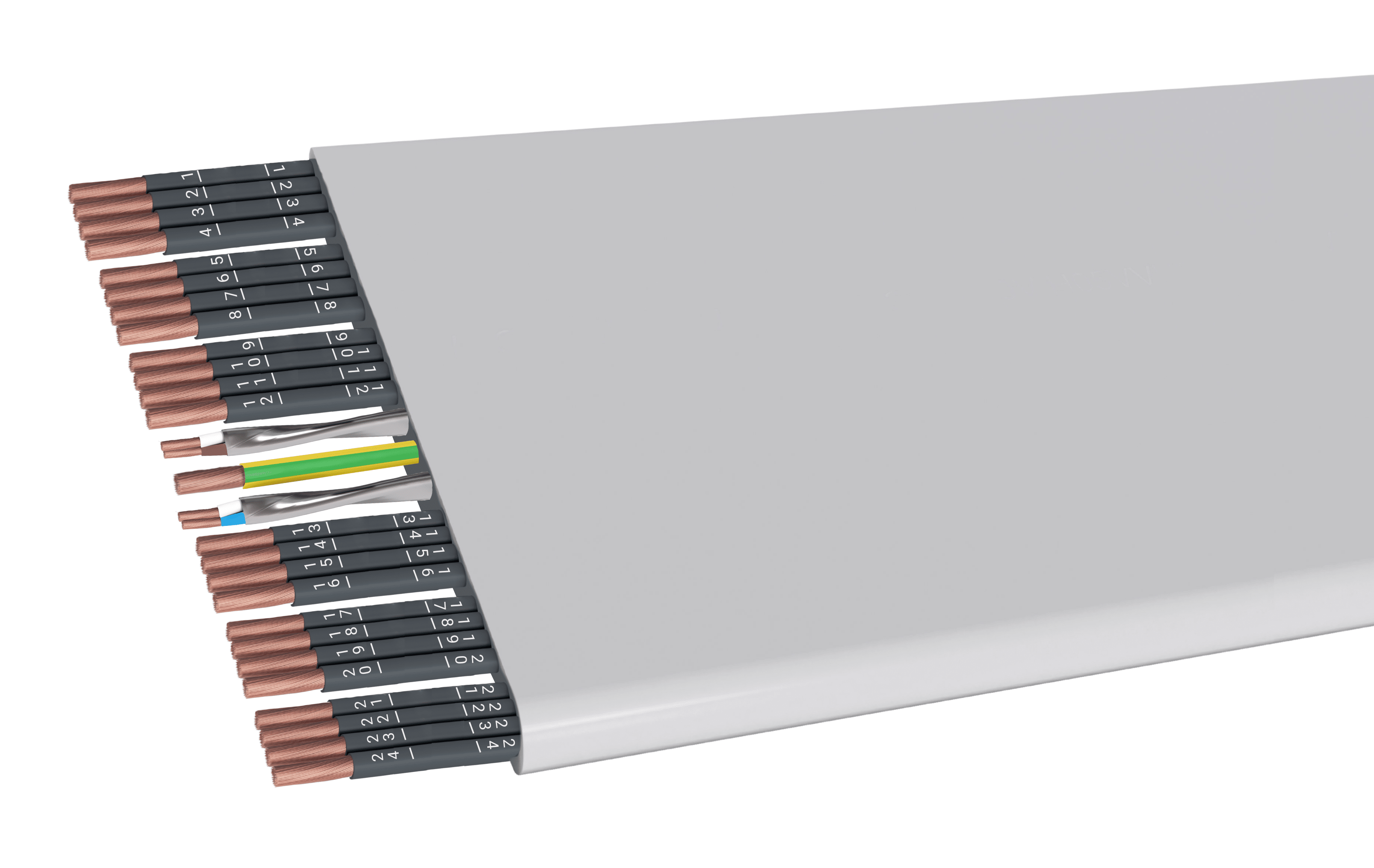

FLAT HYBRID Cable
Flat composite cable with control conductors, earth conductor and signal pairs of type 05VVH6-F or 07VVH6-F.
Optional: with CAN Bus pairs (120 ohms).
Packaging
Contact us for more information about the FLAT HYBRID cable
Request information-
Conductive Material
Bare Copper
Insulation materialPVC (Polyvinyl chloride plasticized)
Fire BehavoirIEC 60332-1-2
Reference standardsEN 50363
EN 50214
EN 50290
Cable TypeMulticore
Flat shape
Higher temperature in fixed installation70
Lower temperature in fixed installation-15
Lower temperature during installation-15
Higher temperature in mobile installation70
Lower temperature in mobile installation-15
Voltage300/500 V (05VVH6-F)
450/750 V (07VVH6-F)
Voltage Uo300 V (05VVH6-F)
450 V (07VVH6-F)
Voltage U500 V (05VVH6-F)
750 V (07VVH6-F)
Laying conditionsIndoor mobile service
Ambienti umidi
Mobile service
Wet environments
Flexible cable
CharacteristicRohs compliant
Flame retardant IEC 60332-1
Non propagante la fiamma IEC 60332-1
Logo CESI
