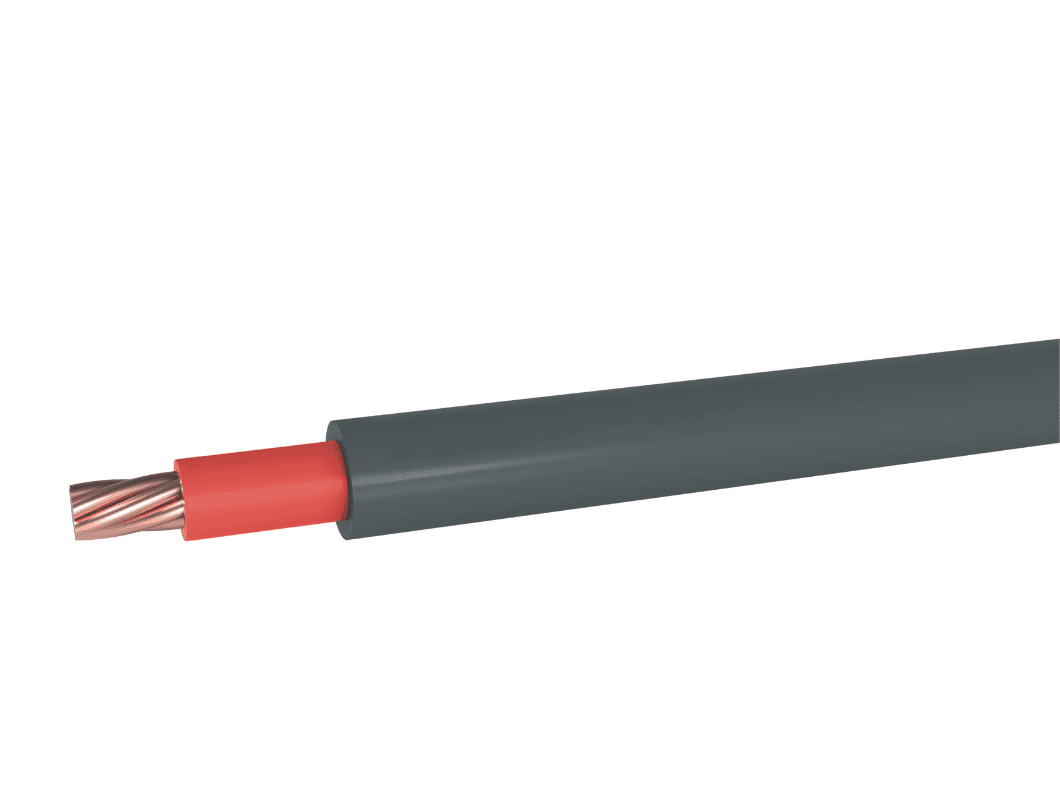

Cu/XLPE/LSF Cable
Stranded single-core electric cables xlpe insulated and sheathed in a low emission of fumes and corrosive gases compound.
Packaging
Contact us for more information about Cu/XLPE/LSF Cable
Request information-
Conductive Material
Bare Copper
Insulation materialXLPE (cross linked polyethylene)
Fire BehavoirEN 60754-1/2
EN 61034-1/2
EN 60332-1-2
EN 60332-3-24 cat.C
Reference standardsIEC EN 60228
IEC 60502
Cable TypeUNIPOLARE
Single core
Higher temperature in fixed installation70
Lower temperature in fixed installation-15
Lower temperature during installation5
Voltage0,6/1kV
Voltage Uo600
Voltage U1000
Voltage Umax1200
Laying conditionsWet environments
Ambienti umidi
Direct burial
Posa direttamente interrata
Installation in free air
Posa in aria libera
Heavy duty and mechanical shocks
Servizio pesante/shock meccanici
Permanent outdoor use
Uso permanente all’esterno
CharacteristicLow emission of smokes and halogens
Rohs compliant
Flame retardant IEC 60332-1
Non propagante la fiamma IEC 60332-1
Logo CESI
Download
Technical Data-sheet
